UNIVIEWXVR301-04F4CHANNELHD
Key Features
- Model: XVR301-04F
- Output: HDMI & VGA
- Input: 1x RJ45, 2x USB2.0
- Compatible: Up to 6TB for each HDD
- Outgoing Bandwidth: 48Mbps
Original price was: 4,000.00৳ .3,500.00৳ Current price is: 3,500.00৳ .
Specification:
Specification
| Audio and Video | ||
| IP Camera Input | 2-ch(only IP up to 6ch), each channel up to 6MP | |
| Display | ||
| Interface | 1x HDMI, 1x VGA | |
| Resolution | 1080P Lite/720P/D1 | |
| Decoding Capacity | Analog:4 x 1080P Lite@25, 4 x 720P@30 IP: 1 x 6MP@20, 2 x 1080P@30 | |
| Recording | ||
| Resolution | Main Stream: 1080P Lite Main stream: 720P | |
| Record Rate | Main Stream: 1080P Lite@25fps Sub stream: D1@25fps Main stream: 720P@30fps Sub stream:D1@30fp | |
| Bit Rate | Audio Sample Rate: 8KHz,16 bit per channel Audio Bit Rate: 64Kbps per channel | |
| Playback And Backup | ||
| Backup Mode | USB | |
| Network | ||
| Interface | 1x RJ45, 2x USB2.0 | |
| Storage | ||
| eSATA | Up to 6TB for each HDD | |
| Auxiliary Interface | ||
| USB | 2x USB2.0 | |
| Power | ||
| Power Supply | DC12V/2A | |
| Power Consumption | ≤ 10 W( without HDD ) | |
| Construction | ||
| Dimensions | 190mm × 202mm × 42mm (7.5″ × 7.9″ × 1.6″) | |
| Gross Weight | ≤0.6 Kg ( 1.32lb ) | |
| Warranty | ||
| Manufacturing Warranty | 1 Year | |
Description:
Description

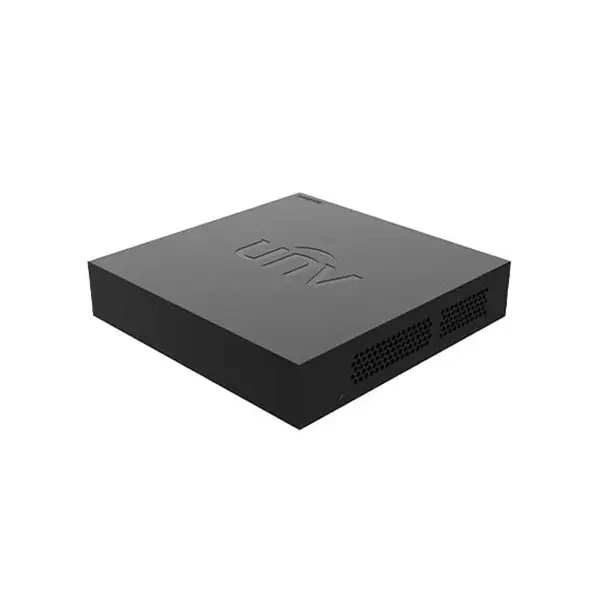

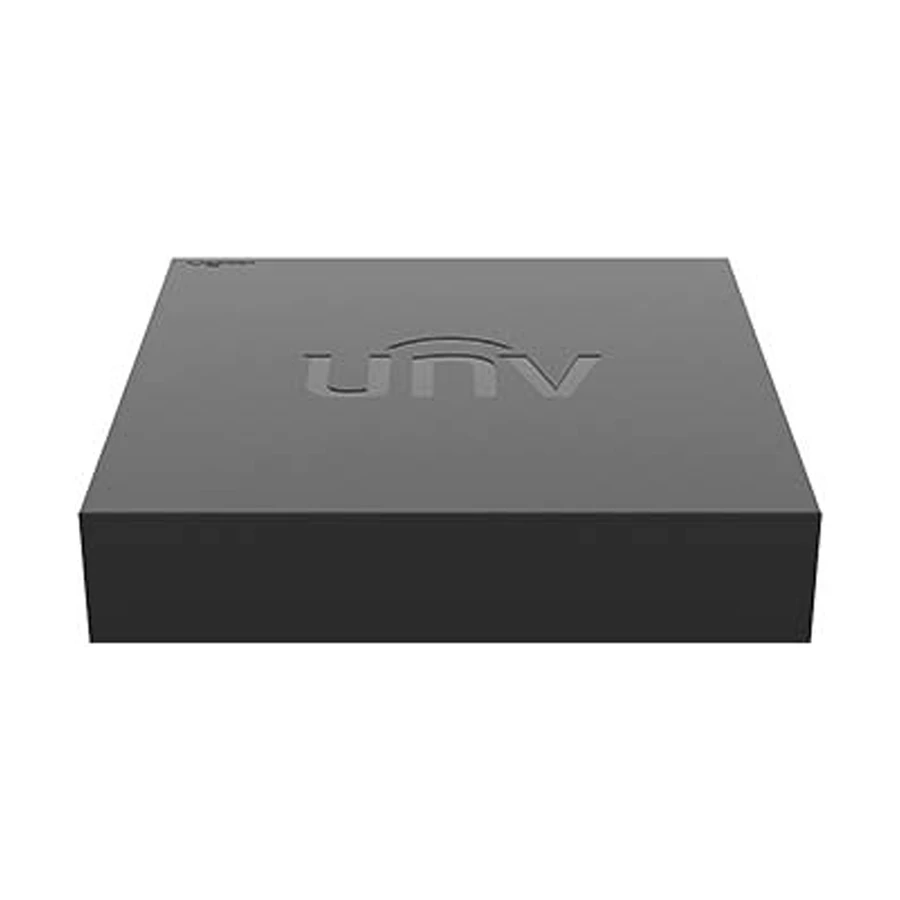

Uniview XVR301-04F 4 Chanel 1 SATA XVR
The Uniview XVR301-04F 4 Chanel 1 SATA XVR is a powerful and adaptable XVR that can support many camera kinds and video formats. It can efficiently and effectively record, playback H.265/H.264 video and send audio and video signals through coaxial cable, allowing you to upgrade your analog cameras without having to rewire them. Uniview XVR301-04F 4 Chanel 1 SATA XVR has adaptive access and can connect to TVI, AHD, CVI, CVBS, and IP cameras, allowing you to mix and match different brands and kinds of cameras. It features four BNC input channels and one SATA port for storage. Uniview XVR301-04F can simultaneously output video to HDMI and VGA displays at up to 1920*1080 resolution, providing crisp and colorful images. The Uniview XVR301-04F 4 Chanel 1 SATA XVR may also be used with standard cameras that implement the ONVIF and RTSP protocols, assuring compatibility and security.
