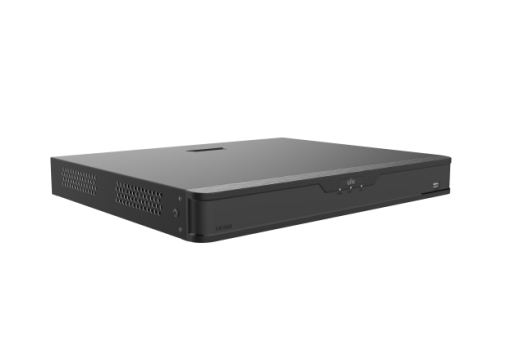

Features of Uniview XVR302-16Q3 DVR/NVR/XVR In Bangladesh

        Brand – Uniview, Model – Uniview XVR302-16Q3, Type – XVR, Number of Input Channel – 16 Channel, Video Compression/Format – H.265/H.264, Video Output (VGA) – 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz, Video Output (HDMI) – 4K(3840X2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz, Video Recording Res. – 1024×768, Max. Video Recording Res. – 3840X2160, IP Video Input – 8-ch(only IP up to 24ch), each channel up to 8MP, Analog & HD-TVI Video Input – Support AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@60fps Support TVI input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@60fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input, Audio Input Channel (RCA) – 1-Channel RCA, Audio Compression – G.711U, Audio Output Channel – 1-Channel RCA, Two way Audio – Yes, Audio Bit Rate – 64Kbps, Frame Rate – Main stream:8MP Lite@8fps, 5MP Lite@12fps, 4MP Lite@15fps, 1080P@15fps, 720P@30fps   Sub stream: D1@8fps, D1@12fps, Stream Type – Main stream, Sub stream, Dual Stream Support – Yes, Live View / Playback Resolution – HDMI/VGA: 1/4/6/8/9/16/25, Decoding Capability – Analog: 16 x 8MP Lite@8, 16x 5MP Lite@12, 16x 4MP Lite@15, 16 x 1080P@15, 16 x 720@30 IP: 24 x D1@30, 16 x 720P@30, 8 x 1080P@30, Synchronous Playback – 16, Network Protocols – TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, Number HDD Interface (SATA) – 2 SATA, Max HDD Support (GB,TB) – Up to 8TB, Max. Storage Support – 8TB, Wi-Fi – No, Wi-Fi Details – Not Applicable, Wi-Fi Coverage (Approximate) – Not Applicable, Network Interface (RJ45) – 1x RJ45 10/100/1000Mbps, Serial Interface – 1 x RS485, USB Port – Rear panel: 1 x USB3.0, Front panel: 1 x USB2.0, Remote Connections – 128, Incoming Bandwidth – 80Mbps, Outgoing Bandwidth – 160Mbps, Power Supply – 12V DC, Approx. Power Consumption – 12 W( without HDD ), Color – Black, Dimension – 380 x 326 x 53mm, Weight (Kg) – 2.0 Kg, Feature – Support H.265/H.264 video formats. Support audio over coaxial cable(only for TVI cameras). Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access. HDMI and VGA simultaneous output. Long transmission distance over coaxial cabl. Support mainstream cameras of ONVIF and RTSP protocols, Others – Working Environment:-10 degree C+ 55degree C. Certification:UL /CE /FCC /RoHS /WEEE. Alarm In: 4 Alarm Out: 1. Alert Alarm: IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal. General Alarm: Motion detection. Recording Resolution: 8MP Lite/5MP Lite/4MP Lite /1080P/720P/D1. Browser: IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows, Warranty – 1 Year, Country of Origin – China, Made in/ Assemble – China
