UNIVIEWNVR301-16S316CH1SATANVR
Key Features
- Model: NVR301-16S3
- Number of Channels:16 Channel
- Outgoing Bandwidth: 48Mbps
- Output Port: 1 x HDMI 1 x VGA
- Storage: Up to 8TB for each disk
Original price was: 9,500.00৳ .9,200.00৳ Current price is: 9,200.00৳ .
Specification:
| Audio and Video | ||
| IP Camera Input | 16 Channel | |
| Display | ||
| Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface Rear panel: 2 x USB2.0 Live view display: 1/4/6/8/9/16 | |
| Resolution | VGA Output 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI Output 3840×2160/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |
| Decoding Capacity | Format: Ultra 265/H.265/H.264 | |
| Multi-Screen Display | Synchronous Playback : 16-ch | |
| Recording | ||
| Compression | Audio Compression: G.711A, G.711U | |
| Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
| Video Detection And Alarm | ||
| Video Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed, Face search, Behavior search, People counting | |
| Playback And Backup | ||
| Sync Playback | 16 channel | |
| Network | ||
| Interface | 1 RJ45 | |
| Ethernet Port | 10M/100M, self-adaptive ethernet interface | |
| Network Function | Incoming Bandwidth: 64Mbps Outgoing Bandwidth: 48Mbps | |
| Maximum User Access | Remote Users: 128 | |
| Storage | ||
| Internal HDD | 1 SATA interface | |
| HDD Mode | Up to 8TB | |
| Auxiliary Interface | ||
| USB | Rear panel: 2 x USB2.0 | |
| Power | ||
| Power Supply | 12V DC | |
| Power Consumption | Power Consumption: ≤5 W (without HDD) | |
| Component Environment | ||
| Operational Conditions | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | |
| Construction | ||
| Dimensions | 260mm × 240mm × 46mm (10.2″×9.4″×1.8 “) | |
| Net Weight | ≤0.98kg (2.16 lb) | |
| Warranty | ||
| Manufacturing Warranty | 1 year Warranty | |
Description:
Description

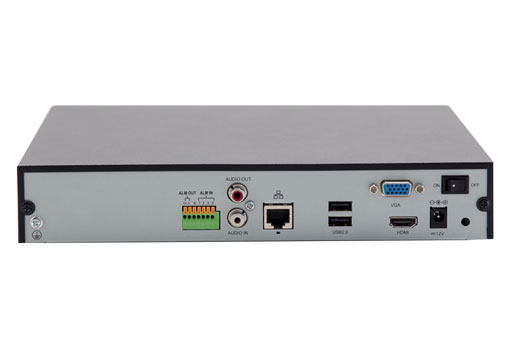

Uniview NVR301-16S3 16 Channel 1 SATA NVR
The Uniview NVR301-16S3 16 Channel NVR is a powerful and efficient network video recorder intended for comprehensive video surveillance. This Uniview NVR supports up to 16 high-definition video input channels and has a single SATA interface with a disk capacity of up to 8TB. The NVR301-16S3 NVR incorporates modern video compression methods (Ultra 265/H.265/H.264) to improve storage and bandwidth efficiency. This Uniview NVR has several output options, including HDMI and VGA, and supports resolutions up to 4K, ensuring crisp and detailed video playback. Also, it supports a variety of network protocols and advanced video analytics, making This Uniview NVR an adaptable and dependable option for both small and large-scale security systems.
