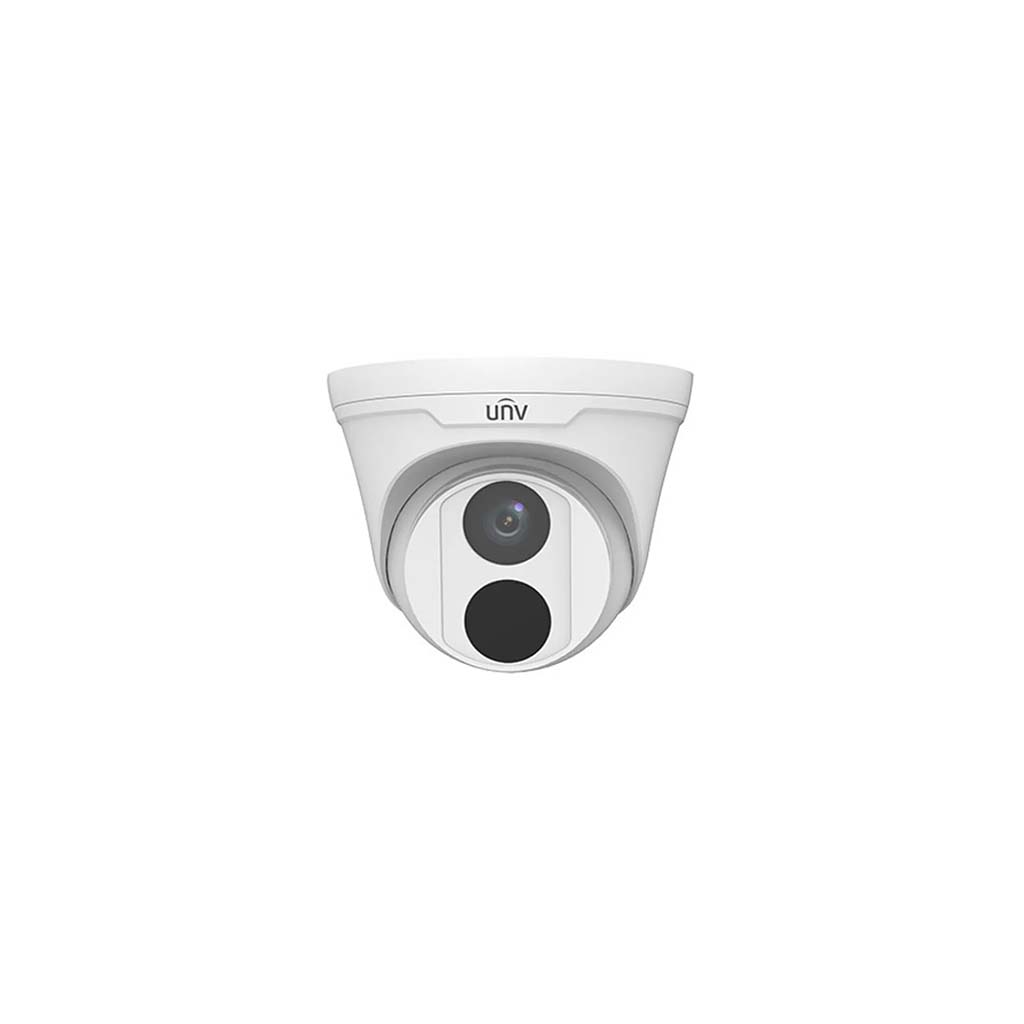

UNIVIEW2MPFIXEDEYEBALLNETWORKCAMERA#IPC3612LB-ASF28-EZG
Key Features
2MP (1920 × 1080) Resolution
2.8mm Fixed Lens
30 Meter IR Distance
Built-in Microphone
1 Year Brand Warranty
Original price was: 3,100.00৳ .2,800.00৳ Current price is: 2,800.00৳ .
Specification:
Basic Info |
|
|---|---|
| Brand |
Uniview
|
| Series |
Dolphin
|
| Model |
IPC3612LB-ASF28-EZG
|
Design |
|
|---|---|
| Product Type |
CC Camera
|
| Form Factor |
Dome
|
| Camera Type |
Fixed
|
| Usage |
Outdoor
|
| Casing |
Plastic
|
| Body Color |
Black and White
|
| Working Distance |
30 Meter
|
Camera |
|
|---|---|
| Image Sensor |
1/2.8″ CMOS Sensor
|
| Mega Pixel |
2MP
|
| Camera Resolution |
1920 (H) × 1080 (V)
|
| Shutter Time |
Auto/Manual, 1 ~ 1/100000s
|
| Day & Night |
IR-cut filter with auto switch (ICR)
|
| Angle Adjustment |
Pan: 0° ~ 360°,Tilt: 0° ~ 80°,Rotate: 0° ~ 360°
|
Lens |
|
|---|---|
| Lens Type |
Fixed-focal
|
| Mount Type |
M12
|
| Focal Length |
2.8mm
|
| Field of View |
(H) 106.7° (V) 57.1° (D) 115.7°
|
Illuminator |
|
|---|---|
| IR Range |
Up to 30m
|
| Wavelength |
850nm
|
| Lifetime |
60,000 Hours
|
Image |
|
|---|---|
| Wide Dynamic Range (WDR) |
DWDR
|
| Image Enhancement |
BNC
|
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
| Privacy Mask |
Up to 4 areas
|
Network |
|
|---|---|
| Ethernet |
RJ45 10M/100M Base-TX
|
| Compatible Integration |
API
|
| Protocol |
IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP
RTCP, DNS, DDNS, NTP, UPnP, HTTP, QoS , RTMP
|
| Client |
UNV-Link ,UNV-Link Pro ,EZStation
|
Video |
|
|---|---|
| Video Compression |
Ultra 265, H.265, H.264
|
| Frame Rate |
Main Stream: 1080P (1920×1080), Max 25fps; 720P (1280×720), Max 25fps;
Sub Stream: D1 (720×576), Max 25fps; 640*360,Max 25fps;
2CIF(704*288), Max 25fps; CIF(352×288), Max 25fps;
|
| ROI |
Up to 8 areas
|
| OSD |
Up to 4 OSDs
|
Audio |
|
|---|---|
| Built-in Mic |
Yes
|
| Camera audio |
TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps
|
Power |
|
|---|---|
| Power Supply |
DC12V
|
| Power Consumption |
Max 3.5W
|
Security |
|
|---|---|
| Ingress Protection |
IP67
|
| Surge Protection |
4KV
|
Certification |
|
|---|---|
| CE |
EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
|
| Safety |
CE LVD (EN 62368-1)
|
Additional Info |
|
|---|---|
| Made in |
China
|
Physical Description |
|
|---|---|
| Dimensions |
144 × 60 × 65mm
|
| Weight |
170gm
|
Warranty |
|
|---|---|
| Warranty |
1 Year
|
| Warranty Details |
1 Year Brand Warranty
|
| Warranty Policy |
No Warranty for Physical & Burn Damage
|
Description:
Full Description
The Uniview model IPC2122LB-ASF40-EZG is a high-value 2 MP network bullet camera designed for outdoor use. With IP67 protection, built-in audio mic, and long-range IR illumination, it ensures reliable performance in demanding lighting and weather conditions. The support for H.265 compression helps reduce storage and network loads, making it ideal for continuous monitoring of entryway, drive-throughs, or outdoor retail zones. |
