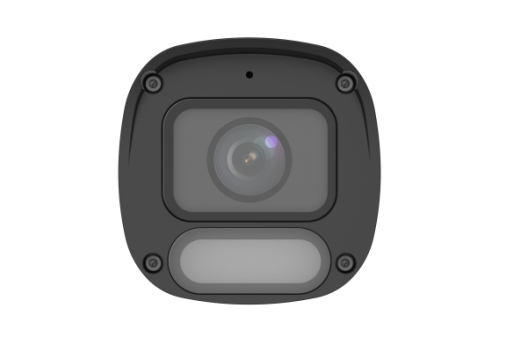

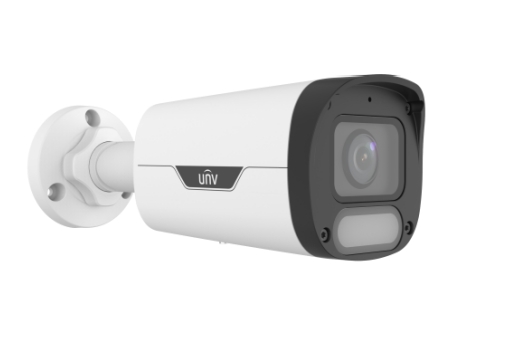

UNIVIEW IPC2312LE-AD F40 KM-WP 2MP COLOR HUNTER BULLET NETWORK CAMERA
Key Features of IPC2312SB-ADF40KM-I0:
| High quality imaging with 2MP, 1/2.8″CMOS sensor |
| Smart intrusion prevention, includes cross line, intrusion, enter area, leave area detection |
| Intelligent People Flow Counting and Crowd Density Monitoring |
| Built-in 2 Mic |
| Smart IR, up to 80m (262 ft) IR distance |
Original price was: 8,000.00৳ .7,900.00৳ Current price is: 7,900.00৳ .
Specification:
| Brand | Uniview |
| Model | IPC2312SB-ADF40KM-I0 |
| Type | 2MP HD Intelligent 80m IR Fixed Bullet Network IP Camera |
| Sensor | 1/2.8″, 2.0 megapixel, progressive scan, CMOS |
| Min. Illumination | Colour: 0.001 lux (F1.6, AGC ON) 0 lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >52dB |
| Adjustment Angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° |
| Lens type | 4.0mm@F1.6 |
| Iris | Fixed |
| Field of View (H) | 87.5° |
| Field of View (V) | 46.3° |
| Field of View (D) | 92.4° |
| DORI Distance | Lens (mm): 4.0 Detect (m): 62.1 Observe (m): 24.8 Recognize (m): 12.4 Identify (m): 6.2 |
| IR Range | Up to 80m (262 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR, NAS(NFS) |
| Frame rate | Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| H.264 Code Profile | Baseline profile, Main Profile, High profile |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video stream | Triple streams |
| Digital Noise Reduction | 2D/3D DNR |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Smart IR | Supported |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| Audio Compression | G.711 |
| Audio Bitrate | 64 Kbps |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Basic Detection | Motion detection, tampering alarm, audio detection |
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication |
| Smart intrusion prevention | Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area Detection |
| Statistical Analysis | People counting, support people flow counting and crowd density monitoring |
| Video Output | N/A |
| RS485 | N/A |
| Audio I/O | N/A |
| Alarm I/O | 1/1 |
| Built-in Mic | Support 2 |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 2 user levels: administrator and common user |
| Security | Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, digest authentication for ONVIF |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+ |
| Power Interface | Ø 5.5mm coaxial power plug |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 7.0 W |
| Surge Protection | 4KV |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Dimensions | 206 × 74 × 74mm (8.1” × 2.9” × 2.9”) |
| Weight | 0.51kg (1.12lb) |
| Body Material | Metal |
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| Reset Button | Supported |
| Warranty Details | 1-Year Brand Warranty |
Description:
Uniview IPC2312SB-ADF40KM-I0 2MP HD Intelligent 80m IR Fixed Bullet Network IP Camera
Uniview IPC2312SB-ADF40KM-I0 2MP HD Intelligent 80m IR Fixed Bullet Network IP Camera is a robust surveillance solution with advanced features for precise monitoring. Featuring a high-quality 2MP image captured by a 1/2.8″ CMOS sensor, this camera ensures clarity and precision in visuals. Supporting multiple resolutions, including 2MP (1920*1080)@30/25fps and 720P (1280*720)@30/25fps, it provides flexibility for diverse surveillance applications.
Utilizing Ultra 265, H.265, H.264, and MJPEG compression technologies, the IPC2312SB-ADF40KM-I0 optimizes storage efficiency without compromising image quality. Its intelligent intrusion prevention system includes cross line, intrusion, enter area, leave area detection, and minimizing false alarms caused by environmental factors like leaves and birds. Target classification focuses on human and motor vehicle recognition, enhancing accuracy. The camera further boasts Intelligent People Flow Counting and Crowd Density Monitoring, offering insights for effective crowd management. Equipped with 120dB true WDR technology, 9:16 Corridor Mode, built-in dual microphones, Smart IR with an impressive 80m (262 ft) distance, support for a 256G Micro SD card, and IP67 protection, this camera stands as a comprehensive surveillance solution. With PoE power supply support and a 1-year brand warranty, the Uniview IPC2312SB-ADF40KM-I0 underscores durability and performance, making it an ideal choice for advanced and reliable surveillance applications. Reviews
