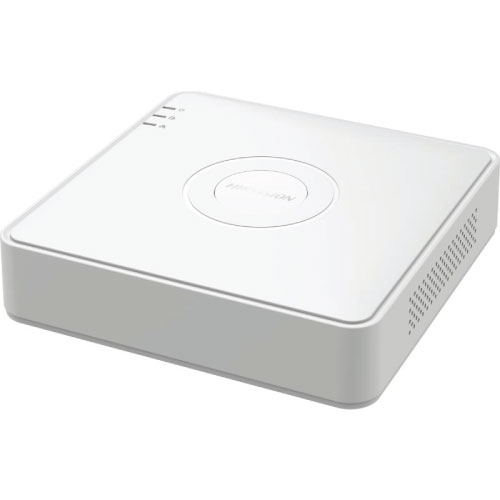

HIKVISON DS-7104HGHI-M1-T 4-CH 1-SATA TWO-WAY AUDIO SUPPORTED DVR
Key Features
- Model: DS-7104HGHI-M1/T
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/CVI/AHD/IP/CVBS video inputs
- Up to 5-ch IP camera inputs
- Support all channels HDTVI two-way audio
Original price was: 3,000.00৳ .2,800.00৳ Current price is: 2,800.00৳ .
Specification:
| Audio and Video | ||
| IP Camera Input | Up to 5-ch IP camera inputs 1-ch (up to 5-ch) Up to 2MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras | |
| Two-Way Talk | Support all channels HDTVI two-way audio technology | |
| Display | ||
| Resolution | Analog Video Input-4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection HDTVI Input-1080p25, 1080p30, 720p25, 720p30 AHD Input-1080p25, 1080p30, 720p25, 720p30 HDCVI Input-1080p25, 1080p30, 720p25, 720p30 CVBS Input-Support HDMI Output-1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz VGA Output-1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz Video Output Mode-HDMI/VGA simultaneous output Audio Input-1-ch RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable Audio Output-1-ch, RCA (Linear, 1 KΩ) | |
| Recording | ||
| Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 | |
| Resolution | For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF | |
| Record Rate | Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N) For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N) | |
| Bit Rate | 32 Kbps to 4 Mbps | |
| Others | Stream Type-Video, Video & Audio Audio Compression-G.711u Audio Bitrate-64 Kbps Audio over coaxial cable, motion detection | |
| Playback And Backup | ||
| Sync Playback | 4-ch | |
| Network | ||
| Interface | SATA-1 SATA interface Capacity-Up to 4 TB capacity for each disk USB Interface-Rear panel: 2 × USB 2.0 64 Mbps | |
| Ethernet Port | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface | |
| Network Function | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS | |
| Power | ||
| Power Supply | 12 VDC, 1.5 A | |
| Power Consumption | ≤ 10 W (without HDD) | |
| Component Environment | ||
| Operational Conditions | Working Temperature -10 °C to 55 °C (14 °F to +131 °F) | |
| Storage Conditions | Working Humidity 10% to 90% | |
| Construction | ||
| Dimensions | 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch) ≤ 0.8 kg (without HDD, 1.8 lb.) | |
| Warranty | ||
| Manufacturing Warranty | 1 Year | |
Description:
Description
Hikvision DS-7104HGHI-M1/T 04 Channel DVR
The Hikvision DS-7104HGHI-M1/T 4-Channel 1080p Lite Mini 1U H.265 DVR is a compact yet powerful surveillance solution designed for high-efficiency video recording and intelligent security monitoring. Equipped with advanced Motion Detection 2.0 powered by deep learning, it accurately distinguishes between humans and vehicles, significantly reducing false alarms caused by irrelevant motion like leaves or lighting changes. This DVR supports up to 5 IP channels with resolutions up to 2MP and is compatible with multiple video input formats including HDTVI, AHD, HDCVI, CVBS, and IP, ensuring flexible integration. With support for H.265 Pro+/H.265/H.264+/H.264 compression, it delivers efficient storage and smooth playback. The Hikvision DS-7104HGHI-M1/T features HDMI and VGA simultaneous output at up to 1080p, 4-channel synchronous playback, and two-way audio communication. Its robust network capabilities include support for up to 32 remote connections and protocols like TCP/IP, DHCP, and Hik-Connect. With a SATA interface supporting up to 4TB storage, dual USB 2.0 ports, and a low power footprint (≤10W without HDD), this Hikvision DVR is ideal for small to medium-scale security systems requiring reliable performance, intelligent analytics, and seamless connectivity.
