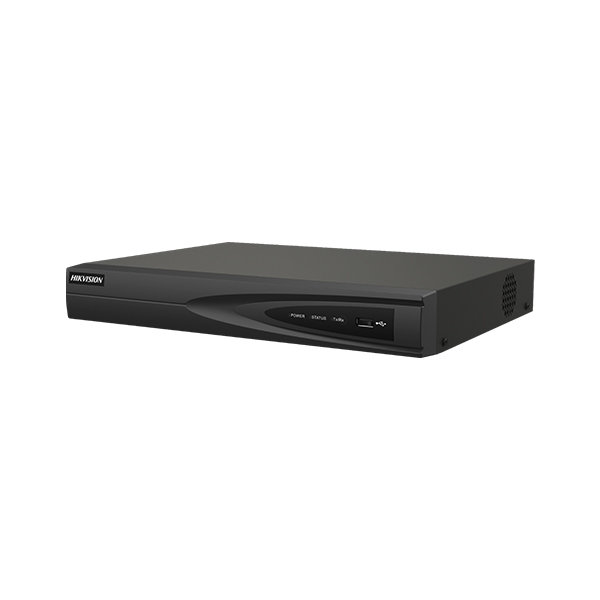

HIKVISION DS-7604NI-Q1 4CH 265+ COMPRESION RATE NVR

Key Features

  • Model: DS-7604NI-Q1
  • IP Camera Input: Up to 4-channel
  • Video Format: H.265+/H.265/H.264+/H.264
  • Incoming Bandwidth: Up to 40 Mbps
  • Storage Capacity: Up to 8TB, 1x SATA Interface

Original price was: 6,900.00৳ .Current price is: 6,500.00৳ .

Specification:

Audio and Video
IP Camera Input 4-ch
Two-Way Talk 1-ch RCA (2.0 Vp-p, 1 k Ω)
Display
Interface HDMI/VGA simultaneous output
Resolution HDMI Output 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output ; 1-ch, 4K(4096×2160)/30Hz,4K (3840×2160) /30Hz, 2K(2560×1440)/60Hz,1920×1080/60Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz; HDMI/VGA simultaneous output ; 1-ch, 4K(4096×2160)/30Hz,4K (3840×2160) /30Hz, 2K(2560×1440)/60Hz,1920×1080/60Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz; HDMI/VGA simultaneous output ;1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 9 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz VGA Output 1920*1080/60Hz,1280*1024/60Hz,1280*720/60Hz;1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output ;1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz;1-ch, 1920*1080/60Hz,1280*1024/60Hz,1280*720/60Hz; HDMI/VGA simultaneous output
Decoding Capacity 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels
Recording
Compression H.265+,H.265,H.264+,H.264
Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Video Detection And Alarm
Video Detection 1-ch;4-ch
Network
Ethernet Port 1x RJ-45 10/100 Mbps self-adaptive Ethernet interface
Storage
Internal HDD 1 SATA interface
HDD Mode Up to 8 TB capacity
Auxiliary Interface
USB 2 x USB 2.0
Power
Power Supply 12 VDC, 1.5 A
Power Consumption ≤ 10 W (without HDD)
Component Environment
Operational Conditions -10 °C to 55 °C (14 °F to 131 °F)
Construction
Dimensions 315.0 x 240.0 x 48.0 320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
Net Weight 1 kg (without HDD, 2.2 lb.)
Warranty
Manufacturing Warranty 1-year

Description:

Description

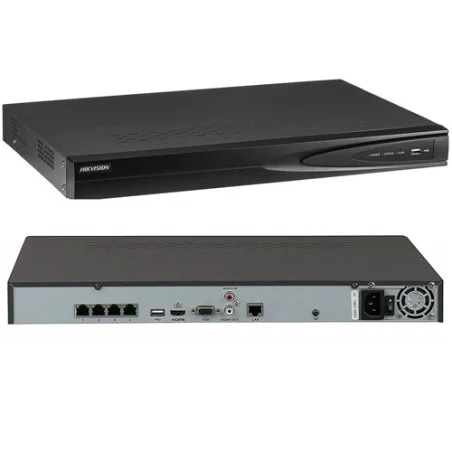

Hikvision DS-7604NI-Q1 4 Channel 4K NVR

        The Hikvision DS-7604NI-Q1 4 Channel 4K NVR is a comprehensive surveillance solution that can support up to four IP camera inputs and different video formats, including H.265+, H.265, H.264+, H.264. Capable of decoding up to 1-ch@8 MP, 3-ch@4 MP, and 6-ch@1080p, it guarantees effective handling of high-definition video. With an incoming bandwidth of 40 Mbps and an outgoing bandwidth of 80 Mbps, the Hikvision DS-7604NI-Q1 4 Channel 4K NVR allows for seamless data transmission. With simultaneous output capability for both HDMI and VGA, users can choose from a variety of display options at up to 4K (3840 × 2160)/30Hz resolution. For improved surveillance, it also has two-way audio capability and audio output. The Hikvision NVR can record at several resolutions, from 8 MP to CIF, and can play back up to 4 channels simultaneously. It has a strong network interface that can connect up to 32 users remotely and is compatible with a variety of network protocols. The DS-7604NI-Q1 is a great alternative for professional surveillance applications since it has two USB 2.0 interfaces and one SATA interface that can support up to 8 TB of capacity per disk. This combination of features makes it a versatile storage and connection solution.
