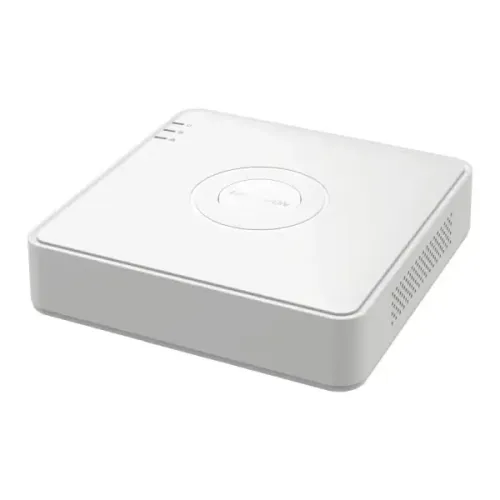

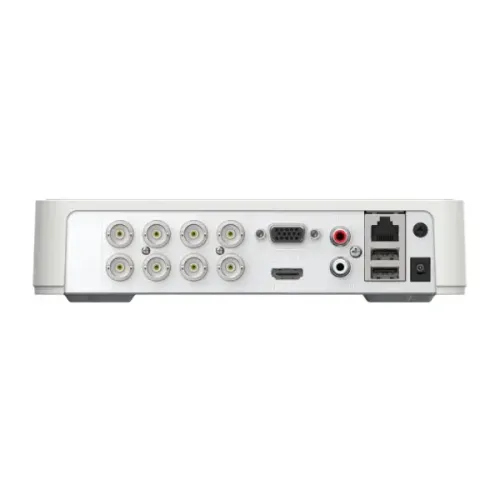

HIKVISION DS-7108HGHI-ECO-M1 08-CH 1-SATA HD TVI DVR

Key Features

    • Model: DS-7108HGHI-ECO/M1
    • H.265 Pro+ / H.265 Pro / H.265 Video Compression
    • Up to 10-ch IP Camera Inputs (up to 2MP)
    • Up to 1080p Lite@15 fps Encoding Capability
    • Max. 1080p25 HDTVI Signal

Original price was: 3,000.00৳ .Current price is: 2,800.00৳ .

Specification:

Audio and Video
IP Camera Input 2-ch (up to 10-ch) Up to 1080p resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Display
Interface 1 HDMI 1 VGA
Resolution HDTVI Input: 1080p25, 1080p30, 720p25, 720p30 AHD Input: 1080p25, 1080p30, 720p25, 720p30 HDCVI Input: 1080p25, 1080p30, 720p25, 720p30 CVBS Input: Support HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Decoding Capacity 1-ch@1080p or 2-ch@720p
Multi-Screen Display 8-ch live view
OSD Camera title, time, video loss, camera lock, motion detection, recording
Recording
Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Resolution For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF
Record Rate Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
Bit Rate 32 Kbps to 4 Mbps
Record Mode Manual, Continuous, Event (Motion, Video Loss, Exception)
Record Interval 1 to 60 minutes per file, pre-record: 1–30s, post-record: 10–300s
Others Stream Type: Video, Video & Audio Audio Compression: G.711u Audio Bitrate: 64 Kbps
Video Detection And Alarm
Trigger Event Recording, alarm output, email, FTP upload, buzzer, screen tips
Video Detection Motion detection, tampering alarm, video loss
Alarm Input N/A
Playback And Backup
Sync Playback 8-ch
Search Mode Quick search by object or event type is supported
Playback Function Play, pause, stop, rewind, fast play, slow play, full screen, backup selection
Backup Mode USB device/network/download via browser
Third Party Support
Third Party Support ONVIF, ISAPI
Network
Ethernet Port 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Network Function TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP, HTTPS
Maximum User Access Up to 64 users
Smart Phone iOS, Android (Hik-Connect app supported)
Interoperability ONVIF 16.12, ISAPI
Storage
Internal HDD 1 SATA interface Up to 4 TB capacity for each disk
HDD Mode Single
Auxiliary Interface
USB 2 × USB 2.0
RS485 Supported (half-duplex)
Power
Power Supply 12 VDC, 1.5 A
Power Consumption ≤ 10 W (without HDD)
Component Environment
Operational Conditions -10 °C to 55 °C (14 °F to +131 °F)
Storage Conditions -20 °C to +70 °C (-4 °F to +158 °F)
Construction
Dimensions 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
Net Weight ≤ 1 kg (without HDD, 2.2 lb.)
Warranty
Manufacturing Warranty 1 Year

Description:

Description

Hikvision DS-7108HGHI-ECO/M1 08 Channel Mini 1U DVR

            The Hikvision DS-7108HGHI-ECO/M1 8 Channel Turbo HD 1080P DVR is an advanced security solution built for seamless performance and long-term reliability. It supports multiple camera formats, including analog, AHD, TVI, CVI, and IP, allowing you to upgrade existing systems without extra costs. With support for up to 5MP resolution on analog feeds and 8MP for IP cameras, every detail is captured clearly. The device records video using Smart H.265+ compression, which minimizes bandwidth and storage usage by up to 80%. This allows users to store more footage without needing frequent data transfers or oversized hard drives. This Hikvision DS-7108HGHI-ECO/M1 DVR is equipped with powerful AI capabilities, such as motion detection, facial recognition, and perimeter protection. These features help detect suspicious activity early and send alerts for proactive security. The integrated 4K HDMI output ensures vivid and sharp live viewing on ultra-high-definition monitors. You can also monitor your property remotely using the Hik-Connect mobile app, web browser, or IVMS-4200 software. This makes it simple to check surveillance feeds from a smartphone, PC, or tablet, no matter where you are. Designed for convenience, the Hikvision DS-7108HGHI-ECO/M1 8 Channel DVR offers multi-channel playback, USB backup, and alarm I/O ports for responsive integration with sensors or sirens. It supports up to 10TB of storage, making it suitable for homes, retail spaces, and office environments that require extended recording history. Its low power consumption and wide operating temperature range allow it to run efficiently in various conditions. With a sleek design and smart features, the Hikvision DS-7108HGHI-ECO/M1 Mini 1U DVR combines robust hardware with intelligent software, delivering security that is scalable, flexible, and future-ready.
