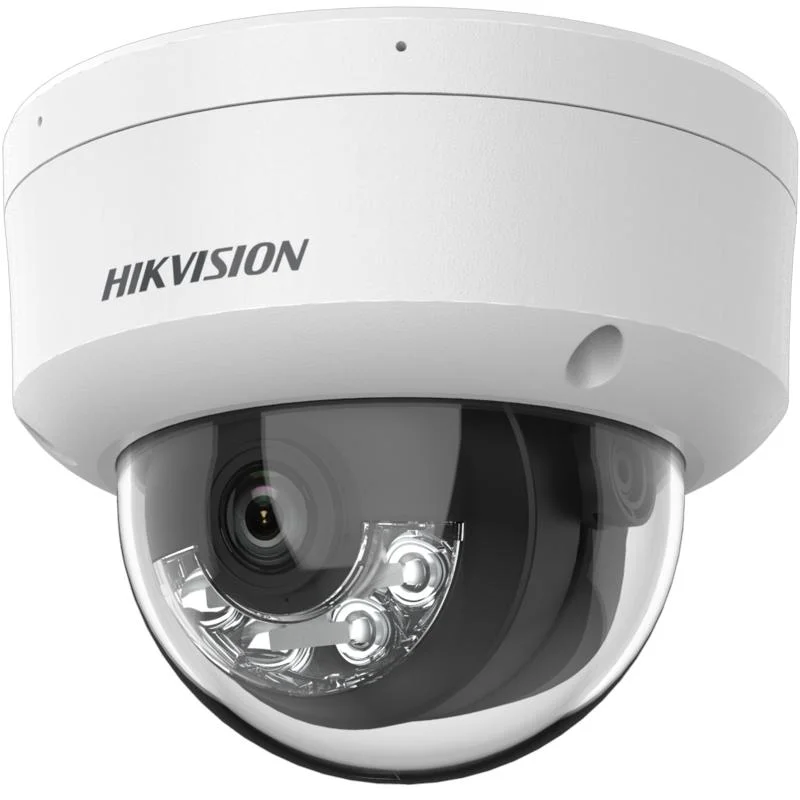

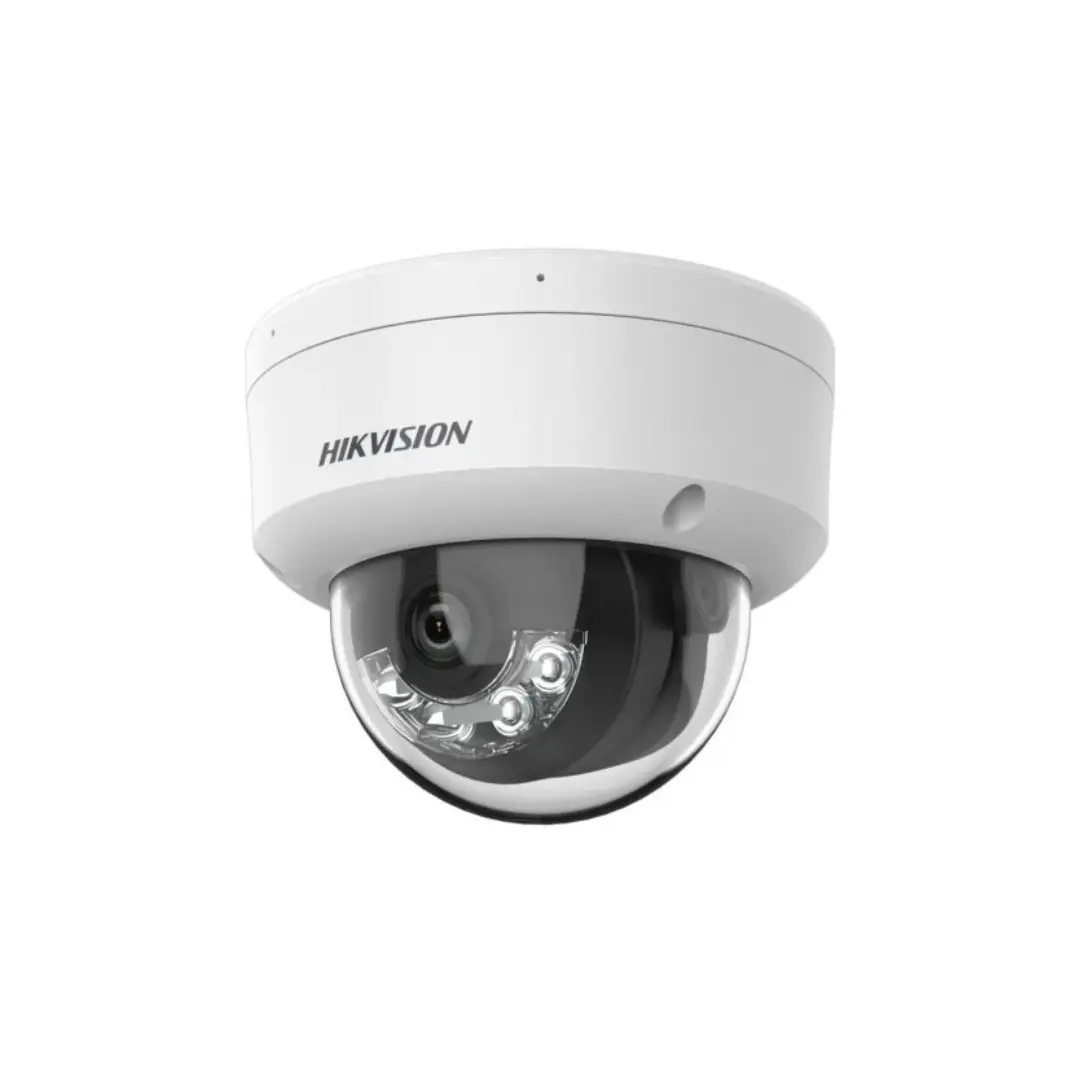

HIKVISION DS-2CD1143G2-LIU 2.8MM 4MP SMART HYBRID LIGHT FIXED DOME NETWORK CAMERA PCS 20
Key Features
- DS-2CD1143G2-LIU
- High-quality imaging with 4 MP resolution
- 1/3″ Progressive Scan CMOS
- advanced technology with long-range
- Built-in microphone for real-time audio security
Original price was: 5,800.00৳ .5,600.00৳ Current price is: 5,600.00৳ .
Specification:
Camera
- Image Sensor1/3″ Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.6
- DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Main Stream
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Region of Interest (ROI)1 fixed region for main stream
- Audio TypeMono sound
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
- ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- ClientiVMS-4200,Hik-Connect
- Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Privacy Mask4 programmable polygon privacy masks
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in MicrophoneYes
- Reset Key-F: Yes
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
- Power
12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W
- MaterialMetal & Plastic
- DimensionØ121.4 mm × 97.7 mm (Ø4.8″ × 3.8″)
- Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
- WeightApprox. 550 g (1.2 lb.)
- With Package WeightApprox. 800 g (1.8 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
- EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
- Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013,IK08: IEC 62262:2002
Description:
Description
-
Hikvision DS-2CD1143G2-LIU 4MP Smart Hybrid Light Fixed Dome Network Camera
-
The Hikvision DS-2CD1143G2-LIU 4MP Smart Hybrid Light Fixed Dome Network Camera is an advanced security solution with an astounding 4 MP resolution that enables it to create photos with remarkable quality. Thanks to its advanced capabilities, this camera can offer more protection than just regular monitoring in a variety of situations. The DS-2CD1143G2-LIU, with its Smart Hybrid Light technology, excels at delivering crisp images even in difficult lighting situations. Long-range capabilities of this technology enable efficient monitoring in a variety of situations. This IP camera provides the best possible image clarity for all-encompassing surveillance, regardless of the lighting circumstances. Its capability for both vehicle and human detection improves the camera’s capacity to concentrate on important events and reduce false alarms. The surveillance system gains an additional degree of accuracy from its intelligent detection capabilities, enabling more precise monitoring and reaction. Real-time audio security is made possible by the integrated microphone, which records and records sound in addition to the high-definition video stream. The use of audio improves situational awareness and offers a more thorough comprehension of the seen surroundings. Because of its H.265+ compression technology, the Hikvision DS-2CD1143G2-LIU places a strong emphasis on efficiency. This cutting-edge compression method ensures effective resource usage by lowering bandwidth and storage needs without sacrificing video quality. With its SD card slot, the camera offers up to 512 GB of on-board storage for more storage versatility. This makes it an easy-to-use and adaptable option for storing and transferring video. This additional storage option increases the camera’s versatility to many types of surveillance applications. With an IP67 designation that protects it from water and dust, the DS-2CD1143G2-LIU is built to survive harsh environmental conditions and may be used outside in a variety of weather scenarios. Its IK08-rated vandal-resistant structure adds even more durability and security against tampering or deliberate harm. High-resolution imaging, intelligent detection features, audio security, effective compression technology, and sturdy construction are all combined in the Hikvision DS-2CD1143G2-LIU 4MP Smart Hybrid Light Fixed Dome Network Camera to provide a complete and dependable surveillance solution for a range of applications.
