UAC-B142-AF28(40)LM-DL

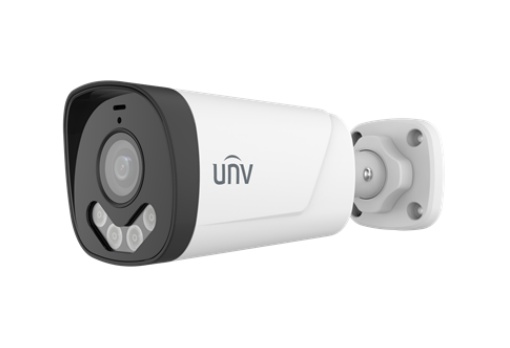

2MP ColorHunter With Smart Dual Light Bullet Analog Camera
High quality imaging with 2MP resolution
• TVI/AHD/CVI/CVBS
• Supports IR-cut filter with auto-switch (ICR)
• Smart Dual Light
• 3D noise reduction technology delivers clean and sharp images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
2,500.00৳
Specification:
| Model | UAC-B142-AF28LM-DL | |
| Sensor | ||
| Pixel | 2MP | |
| Size | 1/3″ | |
| Minimum illumination | 0.003 lux (F1.6, AGC ON) 0 lux (Illuminator ON) | |
| Lens | ||
| Lens | 2.8mm | 4.0mm |
| Lens mount | M12 | |
| Angle of view | H: 100.9° V: 56.5° D: 121.8° | H: 82.5° V: 42.1° D: 98.6° |
| Illuminator | ||
| Illuminator | Two IR illuminators; Two white-light illuminators | |
| Illumination distance | IR: 40m (131.23 ft) White light: 40m (131.23ft) | |
| Lifetime | ≥60,000 hours | |
| Video | ||
| Resolution | 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) | |
| Frame rate | TVI/AHD/CVI: 1080P@25fps (default TVI), 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC | |
| Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s | |
| Image | ||
| Exposure mode | Four modes: Global (default), BLC, HLC, DWDR | |
| Day/Night | Three modes: Auto (default), Day, Night | |
| Digital noise reduction | 2D/3D | |
| White balance | Two modes: Auto (default), Manual | |
| WDR | DWDR | |
| Light mode | Dual light (default) , Infared, White light | |
| Flip | Supports 180° horizontal flip, 180° vertical flip | |
| Defog | NA | |
| Audio | ||
| Microphone | Built-in Mic | |
| Camera audio | TVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps | |
| Interface | ||
| Power | 5.5mm power interface | |
| Video output | BNC, supports TVI/AHD/CVI/CVBS | |
| Operating environment | ||
| Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Humidity | ≤95% (RH, non-condensing) | |
| Surge protection | 4kV | |
| General | ||
| Power | DC 12V (±25%), with reverse polarity protection, Max 3.6W | |
| Mount | 3D bracket supplied, surface mount (default), optional backbox, pole mount bracket | |
| Dimensions | 198mm*74mm*74mm (L*W*H) | |
| Material | Metal+Plastic | |
| Weight | 227g (0.50lb) | |
| OSD menu language | 11 Languages English, German, Spanish(Latin America), French, Italian, Japanese, Korean, Polish, Portuguese(Brazil), Russian, Turkish | |
| Certification | ||
| EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) | |
| Safety | CE-LVD (EN 62368-1) | |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |
| Protection | IP67 (IEC 60529) | |
Description:
Description
This Uniview dome camera offers wide surveillance coverage with a compact discreet design perfect for indoor ceilings, hallways, reception counters, restaurants & school lobbies. IR LEDs ensure consistent night recording for secure constant monitoring. |
